MagnumForce

MagnumForce

Innovative construction with a high performance polyester fiber and a compact protective cover

Part Number: 2025025
: RCHPE20X10
RCHPE20X10
  • Up to 50% lighter than conventional roundslings for even better manual handling
  • Up to 50% slimmer than conventional roundslings
  • Can be used better against narrower edge sides than conventional PES slings
  • Shackles and other fasteners are therefore less affected
  • Variable load pick-up point for more even wear
  • Ideal for lifting into strangles without folding cylindrical objects

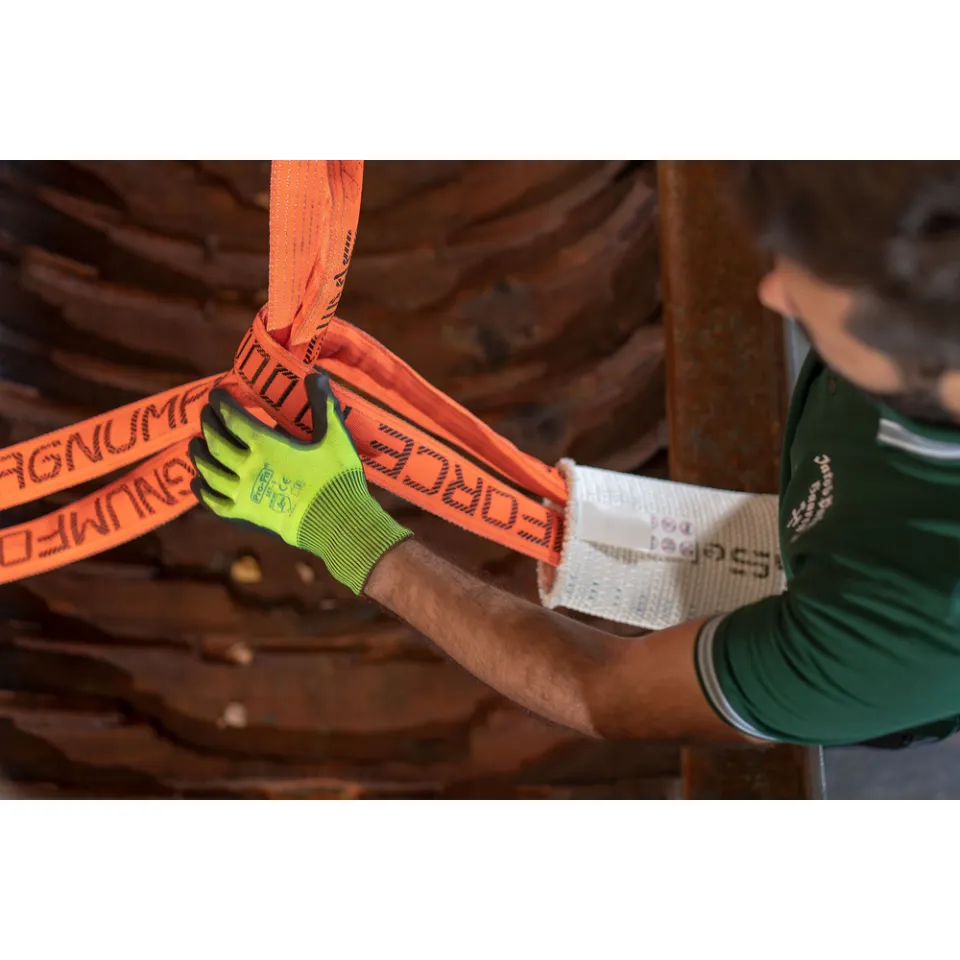

  • Ideal for choke lifting cylindrical objects without creasing; Less creasing means less wear; Lifts smooth objects without damage; High strength to weight ratio; Reinforced high performance woven cover; WLL data woven into sleeve for unmistakable capacity identification; Wide range of capacities from 10,000 to 600,000 lb (and larger upon request); Available in lengths up to 98 ft; Roundslings are repairable upon manufacturers inspection

Select Model

For more information or to place an order, please call our customer service team at 800-334-7505 or email [email protected]

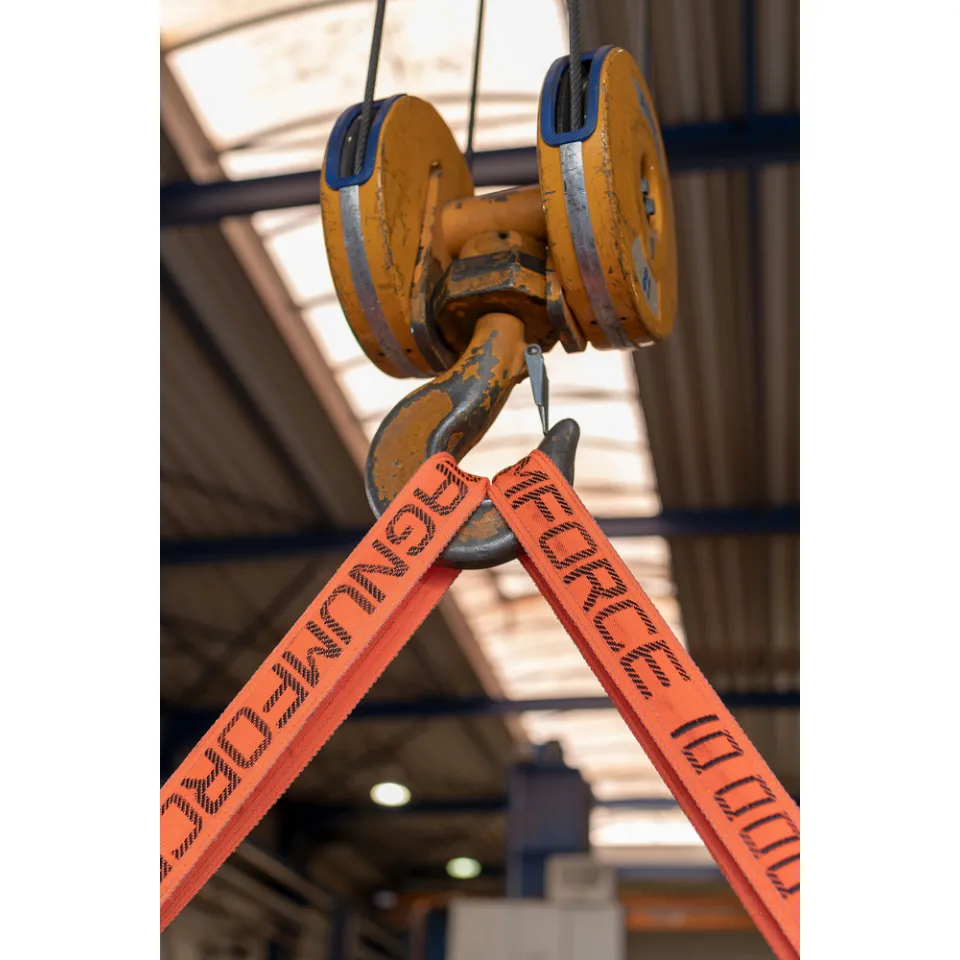

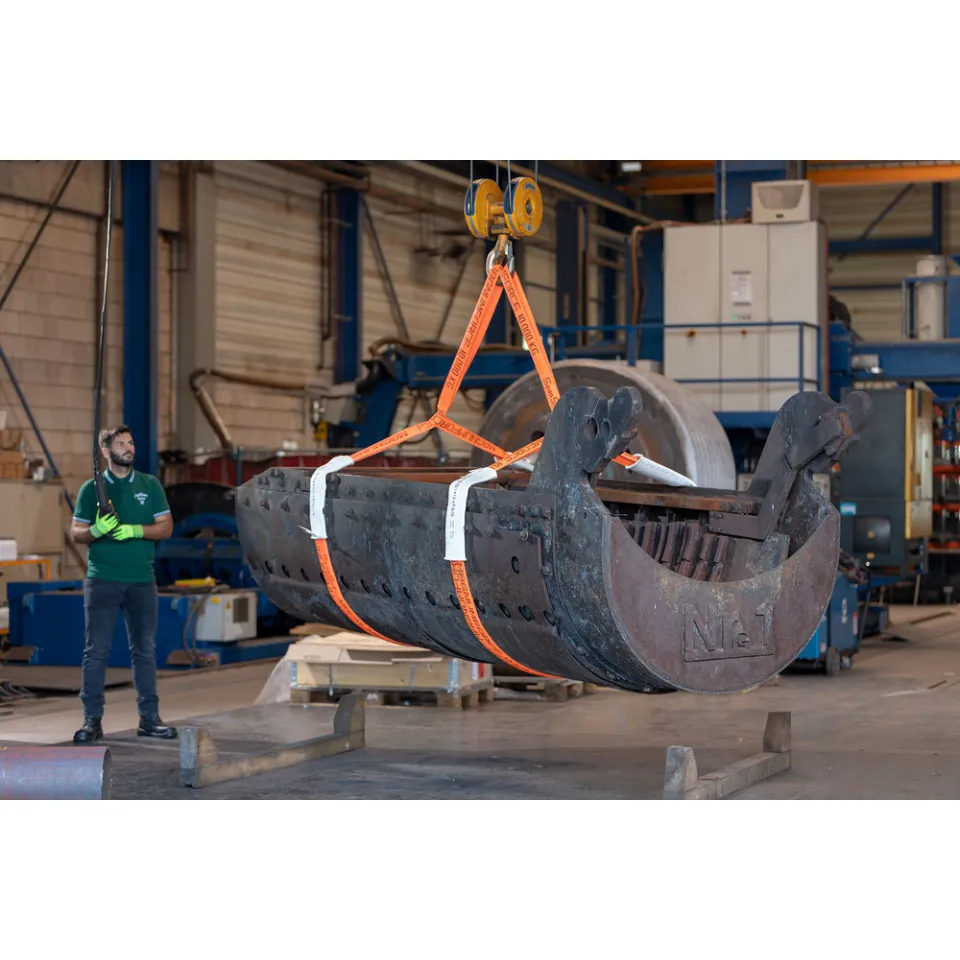

SpanSet MagnumForce Round Sling

  • Compact - The innovative construction with a high performance polyester fiber and a compact protective cover partially woven with the same material make the MagnumForce® Roundsling up to 50% slimmer than comparable roundslings with the same load bearing capacity.
    At the same time, it produces greater stiffness within the sling along both axis. The roundsling is not bunched even in smaller crane hooks and attachment points and it is easy to suspend the sling overhead.
  • Wear Resistant - Outer protective cover is reinforced with an extremely abrasion and tear resistant high performance polyester. In addition, the special design reduces the formation of bunching at the attachment point, which again significantly improves the wear behavior.
    MagnumForce® exhibits the greatest reliability and longest durability even under the harshest operating conditions – an economic factor you can count on.
  • Resilient - The new, high performance fiber has a significantly greater capacity. Consequently, less material is needed in the fabric, which makes MagnumForce® up to 50% lighter than conventional roundslings. With the same load capacity, this high performance roundsling can be laid against tighter edge radii than conventional polyester slings. Work becomes more efficient, quicker and safer.
  • Compliant - The MagnumForce® inner load-bearing core is made from the same material as the outer sleeve. This is to ensure any chemical damage indications are consistent with both inner and outer materials. ASME B30.9-2014

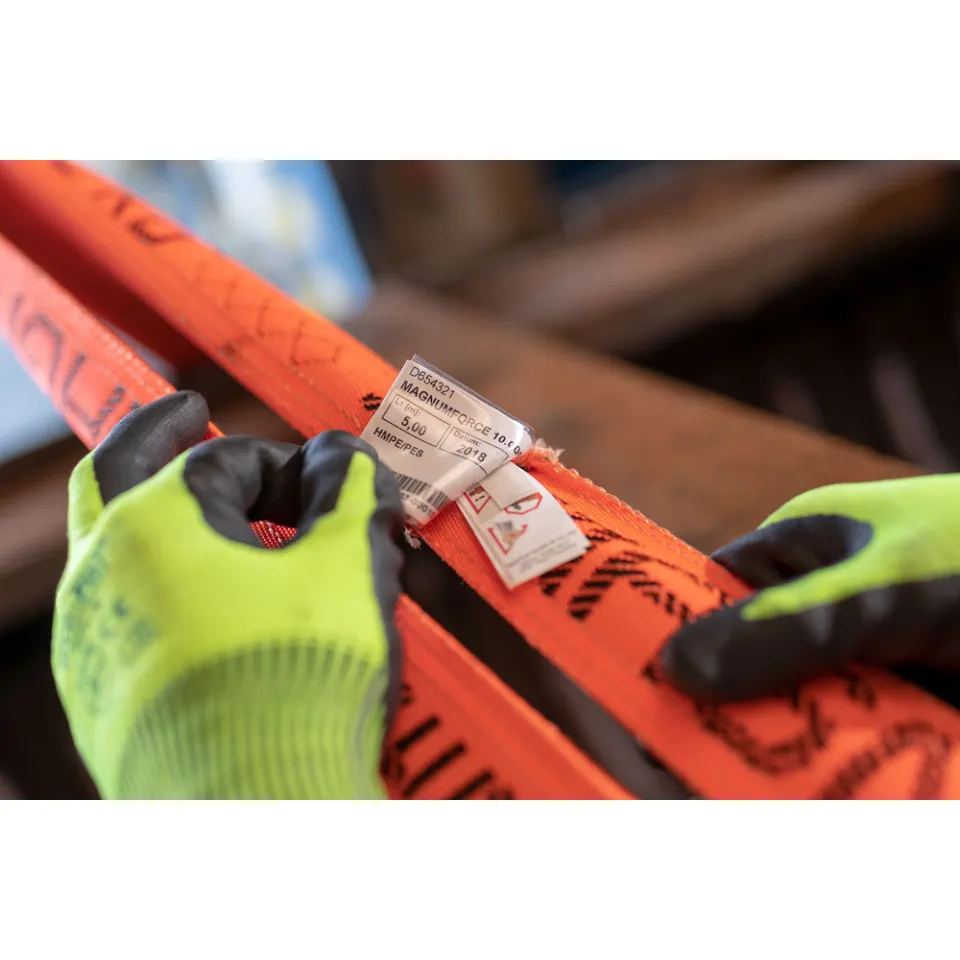

  • Identifiable - The MagnumForce® has an extra sleeve with a raised, woven-in load capacity indicator- a safety feature that has proven to be a success. The load capacity is clearly identifiable, even from a distance in the dirtiest conditions, preventing accidents and protecting people and materials.

Product Technical Information

  • Temperature Range
    -40°C bis +100°C
  • Color
    Orange
  • Main Material
    High-performance polyester
  • Packaging Unit (PU)
    pcs
  • Packaging Unit (PU) Content
    1

Product downloads and manuals

Magnum Force Lifing Capacities
(en_US)
Download

Technical Drawings

Part Number Part Number
2025025 RCHPE20X10
2025026 RCHPE20X20
2025027 RCHPE20X30
2025028 RCHPE20X40
2025029 RCHPE30X10
2025030 RCHPE30X20
2025031 RCHPE30X30
2025032 RCHPE30X30
2025033 RCHPE40X10
2025034 RCHPE40X20
2025035 RCHPE40X30
2025036 RCHPE40X40
2025037 RCHPE50X20
2025038 RCHPE60X20
2025039 RCHPE80X20
2025040 RCHPE100X20
2025041 RCHPE125X20
2025042 RCHPE200X20
2025043 RCHPE250X20
2025044 RCHPE300X20
