Twintex

SKU: 2012577
Price: 23.93 USD
Availability: OutOfStock

High-tenacity polyester yarn encased in a smooth, double-wall tightly woven cover

$ 23.93

VAT not included

Part Number: 2012577

: E30X6

E30X6

Most flexible style of sling
Less rigging weight
Easy handling
Wear points can be shifted to extend life
Color-coded capacity indication
RED core warning fibers

Select Model

$ 23.93

VAT not included

Quantity

TWINTEX® Roundsling

Developed by SpanSet, Inc. is manufactured from a continuous loop of high-tenacity polyester yarn encased in a smooth, double-wall tightly woven cover without any edge seam.

Most TWINTEX® Roundslings feature a cover made from the same type of yarn as the core, permitting a quick external examination to reveal any possible chemical damage that may have also affected the load-bearing core yarn which might require the slings’ removal from service.

RED core warning fibers; E30 through E180 - Max Length 50’ increased abrasion resistance; E240 and up Max Length 98’

The load-bearing core yarns are encased by the cover, they are protected from cuts, abrasion, and the harmful effects of ultra-violet rays.

Removal from service can be determined if the red-striped white core yarns can be seen through any holes or cuts in the cover.

Product Technical Information

Label Protection
No
Main Material
High-Tenacity Polyester
Norms
ASME B30.9
Packaging Unit (PU)
pcs
Temperature Range
-40°C bis +100°C
Packaging Unit (PU) Content
1

Product downloads and manuals

Datasheet
Download

Technical Drawings

Product Variants

Part Number	Part Number	Price	Color
2012577 E30X6	E30X6	$ 23.93 VAT not included	Purple
2012579 E90X4	E90X4	$ 27.89 VAT not included	Yellow
2012581 E150X10	E150X10	$ 93.01 VAT not included	Red
2012582 E240X10	E240X10	$ 147.14 VAT not included	Blue
2012884 E30X4	E30X4	$ 17.43 VAT not included	Purple
2013976 E60X4	E60X4	$ 21.26 VAT not included	Green
2013977 E60X6	E60x6	$ 30.14 VAT not included	Green
2013978 E60X8	E60X8	$ 39.01 VAT not included	Green
2013979 E60X10	E60X10	$ 47.89 VAT not included	Green
2013980 E60X12	E60X12	$ 56.76 VAT not included	Green
2013982 E90X6	E90X6	$ 39.41 VAT not included	Yellow
2013983 E90X8	E90X8	$ 50.94 VAT not included	Yellow
2013984 E90X12	E90X12	$ 73.99 VAT not included	Yellow
2013985 E90X10	E90x10	$ 62.46 VAT not included	Yellow
2013986 E90X20	E90X20	$ 120.09 VAT not included	Yellow
2021234 E150X20	E150X20	$ 179.14 VAT not included	Red
2022115 E30X8	E30X8	$ 30.43 VAT not included	Purple
2022122 E30X10	E30X10	$ 36.93 VAT not included	Purple
2022123 E30X12	E30X12	$ 43.43 VAT not included	Purple
2022124 E30X20	E30X20	$ 69.43 VAT not included	Purple
2022125 E60X20	E60X20	$ 92.26 VAT not included	Green
2022126 E120X4	E120X4	$ 31.66 VAT not included	Tan
2022127 E120X6	E120X6	$ 44.64 VAT not included	Tan
2022128 E120X8	E120X8	$ 57.61 VAT not included	Tan
2022129 E120X10	E120X10	$ 70.59 VAT not included	Tan
2022130 E120X12	E120X12	$ 83.56 VAT not included	Tan
2022131 E120X20	E120X20	$ 135.46 VAT not included	Tan
2022132 E150X6	E150X6	$ 58.56 VAT not included	Red
2022133 E150X8	E150X8	$ 75.79 VAT not included	Red
2022134 E150X12	E150X12	$ 110.24 VAT not included	Red
2022145 E180X4	E180X4	$ 46.31 VAT not included	White
2022146 E180X6	E180X6	$ 66.19 VAT not included	White
2022147 E180X8	E180X8	$ 86.06 VAT not included	White
2022148 E180X10	E180X10	$ 105.94 VAT not included	White
2022149 E180X12	E180X12	$ 125.81 VAT not included	White
2022150 E180X20	E180X20	$ 205.31 VAT not included	White
2022151 E240X4	E240X4	$ 63.66 VAT not included	Blue
2022152 E240X6	E240X6	$ 91.49 VAT not included	Blue
2022153 E240X8	E240X8	$ 119.31 VAT not included	Blue
2022154 E240X12	E240X12	$ 174.84 VAT not included	Blue
2022155 E240X20	E240X20	$ 286.26 VAT not included	Blue
2022156 E360X4	E360X4	$ 87.44 VAT not included	Grey
2022157 E360X6	E360X6	$ 127.06 VAT not included	Grey
2022158 E360X8	E360X8	$ 166.69 VAT not included	Grey
2022159 E360X10	E360X10	$ 206.31 VAT not included	Grey
2022160 E360X12	E360X12	$ 245.94 VAT not included	Grey
2022161 E360X20	E360X20	$ 404.44 VAT not included	Grey
2022162 E480X4	E480X4	$ 108.30 VAT not included	Maroon
2022163 E480X6	E480X6	$ 158.93 VAT not included	Maroon
2022164 E480X8	E480X8	$ 209.55 VAT not included	Maroon
2022165 E480X10	E480X10	$ 260.18 VAT not included	Maroon
2022166 E480X12	E480X12	$ 310.80 VAT not included	Maroon
2022167 E480X20	E480X20	$ 513.30 VAT not included	Maroon
2024066 E150X4	E150X4	Price under request You can ask for a quote adding the item to the shopcart	Red
2030190 E600X8	E600X8	Price under request You can ask for a quote adding the item to the shopcart	Brown
2030191 E600X10	E600X10	Price under request You can ask for a quote adding the item to the shopcart	Brown
2030192	E600X12	Price under request You can ask for a quote adding the item to the shopcart	Brown
2030193 E600X20	E600X20	Price under request You can ask for a quote adding the item to the shopcart	Brown
2030194 E800x8	E800X8	Price under request You can ask for a quote adding the item to the shopcart	Olive
2030195 E800X10	E800X10	Price under request You can ask for a quote adding the item to the shopcart	Olive
2030196 E800X12	E800X12	Price under request You can ask for a quote adding the item to the shopcart	Olive
2030197 E800X20	E800X20	Price under request You can ask for a quote adding the item to the shopcart	Olive
2030198 E1000X8	E1000X8	Price under request You can ask for a quote adding the item to the shopcart	Black
2030199 E1000X10	E1000X10	Price under request You can ask for a quote adding the item to the shopcart	Black
2030200 E1000X12	E1000X12	Price under request You can ask for a quote adding the item to the shopcart	Black
2030201 E1000X20	E1000X20	Price under request You can ask for a quote adding the item to the shopcart	Black

Related products

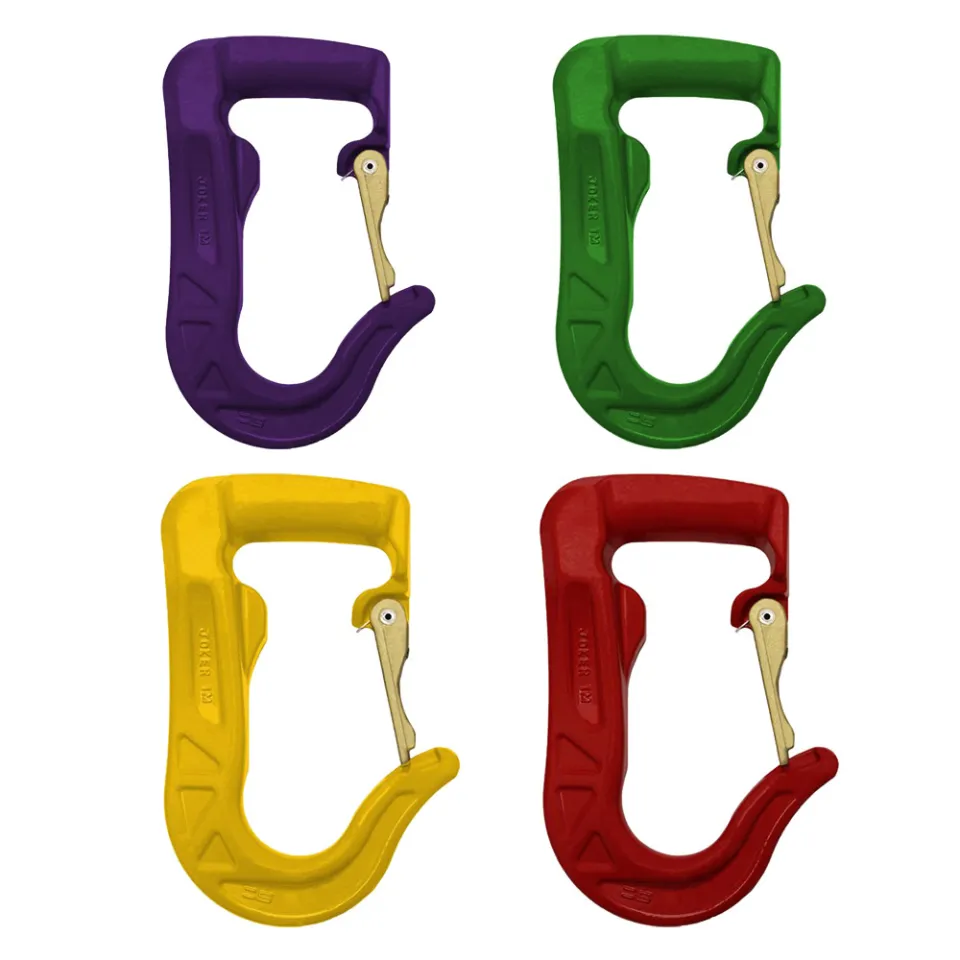

Joker Hooks
