US1104

US1104

Confident and comfortable harness with sternal and dorsal anchorage

Part Number: 2012825
: US1104

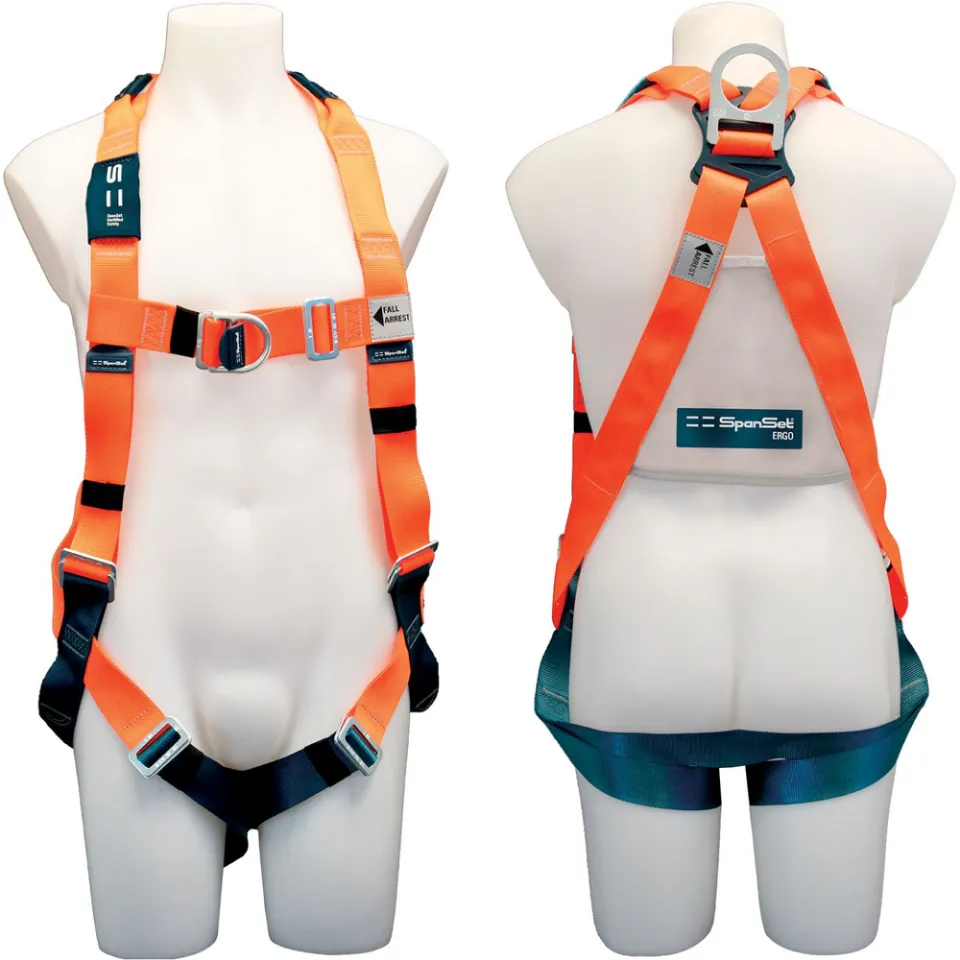

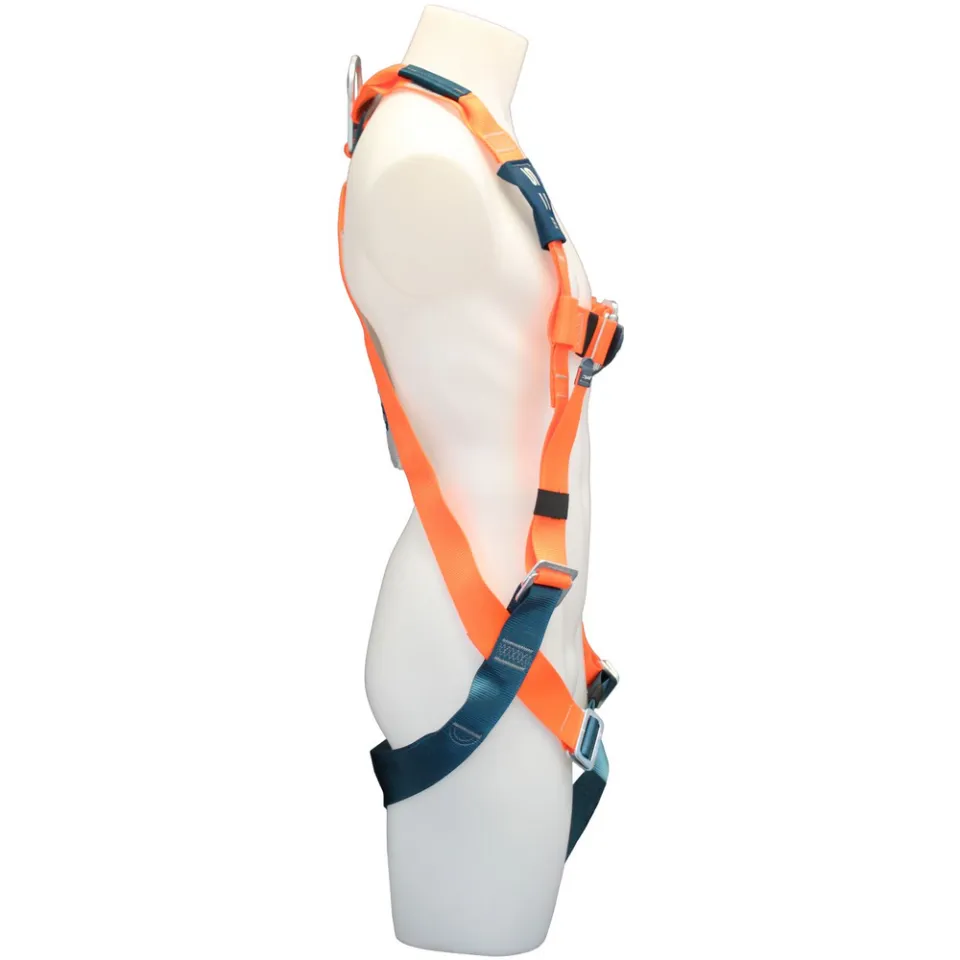

US1104 - One Size (Universal)
  • Versatile for most Fall Protection applications
  • Breathable mesh panel helps keep harness from getting tangled allowing for easy donning
  • Sternal and dorsal anchorage
  • 5 adjustment points
  • Rescue attachment points
For more information or to place an order, please call our customer service team at 800-334-7505 or email [email protected]

When working at height it is important for the user to be both confident and comfortable in their equipment. SpanSet's harnesses have been designed, taking into account the demands of the different types of work and the environments in which they are used.

For most Fall Protection applications the rear attachment on the harness is used. On some occasions it may be necessary to attach to the front as with connection to a permanent ladder system or to undertake a rescue.

  • Adjustable tongue and buckle leg straps for quick and easy on - easy off
  • Breathable mesh panel helps keep harness from getting tangled allowing for easy donning
  • Lightweight construction

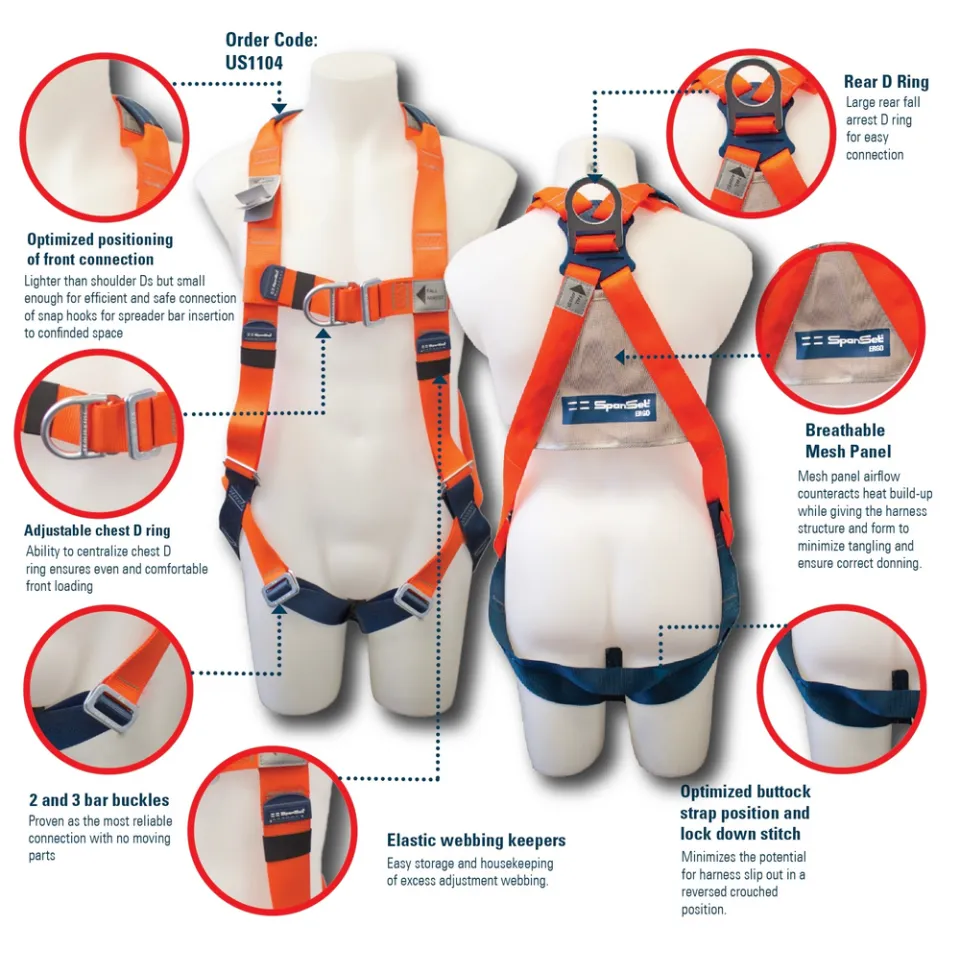

  • Buttock strap position and lock down stitch minimizes the potential for harness slip out in a reversed crouched position.

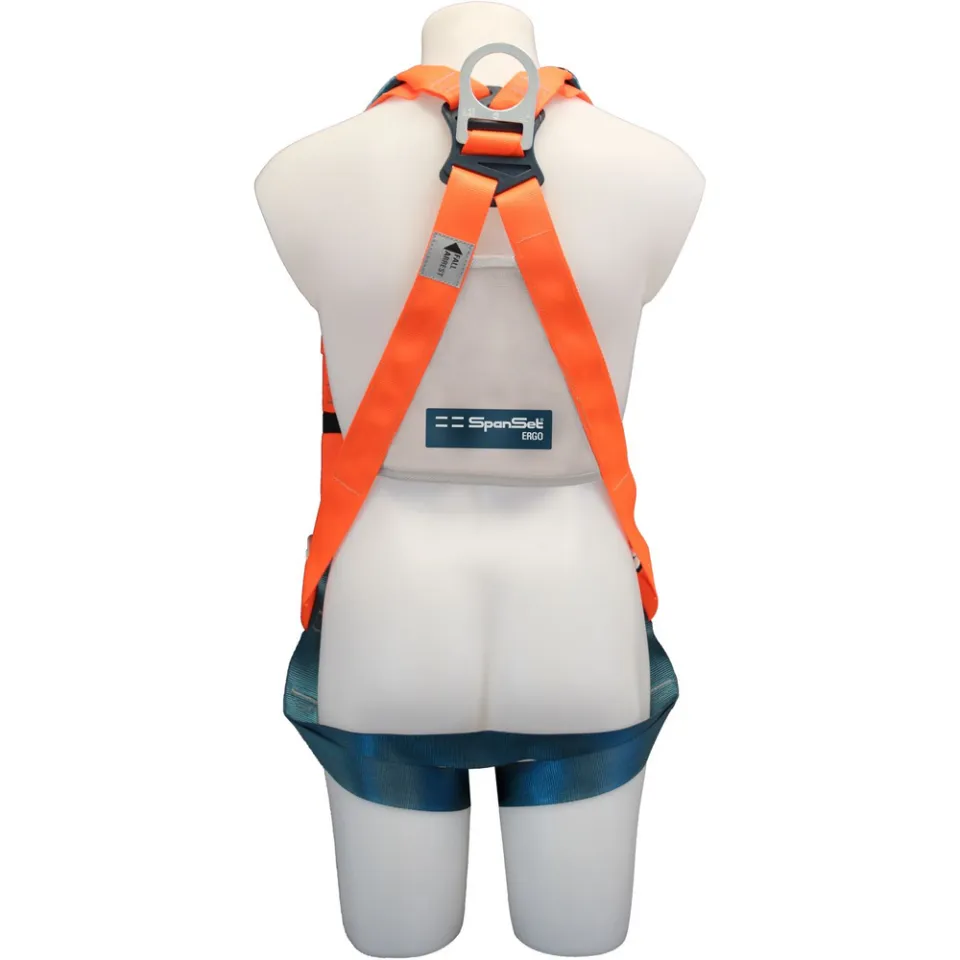

  • Large rear fall arrest D ring for easy connection
  • Lighter than shoulder Ds but small enough for efficient and safe connection of snap hooks for spreader bar insertion to confinded space
  • Adjustable chest D ring ability to centralize chest D ring ensures even and comfortable front loading
  • 2 and 3 bar buckles proven as the most reliable connection with no moving parts

Product Technical Information

  • Hardware Material
    Carbon / Alloy Steel
  • Buckle Type
    29433
  • Harness Webbing Material
    Polyester
  • Positioning Belt
    No
  • Dorsal Anchorage
    Yes
  • Sternal Anchorage
    Yes
  • Ventral Anchorage
    No
  • Dorsal Extension
    No
  • Padded Shoulders
    No
  • Padded Leg straps
    No
  • Tool Attachments
    No
  • Label Protection
    Yes
  • Norms
    ANSI Z359.14-2014
  • Packaging Unit (PU)
    pcs
  • Temperature Range
    -40 °F to 120 °F
  • Inspection Guide
    Yes
  • Multilingual User Instruction Manual
    Yes
  • Packaging Unit (PU) Content
    1
  • Individual Certificate
    Yes
  • Individually Serial Numbered
    Yes
  • Color
    Orange

Product downloads and manuals

...
Datasheet
Download
